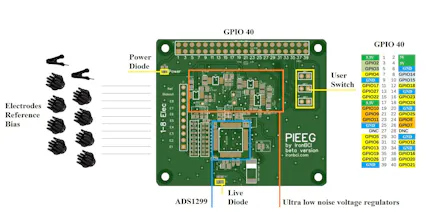

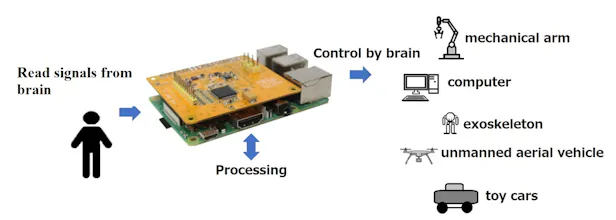

PiEEG is an open-source Raspberry Pi shield that measures biosignals such as those used in electroencephalography (EEG), electromyography (EMG), and electrocardiography (ECG). PiEEG is versatile, easy to work with, and compatible with different types of electrodes. Best of all, it was designed to be usable by anyone. To begin measuring bio-signals, all you need to do is connect the electrodes and run a Python script. Applications include gaming, entertainment, sports, health, meditation, and more. PiEEG is not a medical device and has not been certified by any government regulatory agency for use with the human body. You are fully responsible for your personal decision to purchase this device and, ultimately, for its safe use. Features & Specifications Compatible with Raspberry Pi 3 or 4 4 or 8 channels for connecting wet or dry electrodes Data transfer via SPI protocol with a frequency from 250 SPS to 16 kSPS and a resolution of 24 bits per channel Programmable signal gain: 1, 2, 4, 6, 8, 12, 24 Ability to measure impedance LEDs for power indication and ADS1299 connection indication 3 free pins for connecting external objects (ground and Raspberry Pi channel) 33 Pins from the Raspberry Pi GPIO can be used for various tasks, like connecting external devices Easy programming with the provided open-source software for reading and processing data in Python, C, and C++ All technical details (Software, Manuals) on GitHub https://github.com/Pi-EEG/EEGwit...
